China Cement mortar automatic feeding mixing truck concrete stirring tank transport equipment
Product Description
Product Description
Stirring speed Fast feeding speed Low discharge residual rate The rotation speed of the mixing tank is 612 circles per minute; Discharge residual rate: less than 0.8 (standard requirements 3-5); Discharge speed: greater than or equal to 2 cubic meters/minute (specified as 2.7 cubic meters/minute); Feed rate: greater than or equal to 3.5 cubic meters/minute (specified as 2.7 cubic meters/minute).
Operation process 1. All Parts of the mechanical system should be carefully inspected before starting, and it can be started after confirming that it is good. 2. Before starting, place the mixing joystick in the "Neutral" position. 3. After starting, place the mixing joystick in the "unloading" position and remove the water in the drum. 4. When loading, the stirring lever should be placed in the "loading" position. 5. Before transportation, the unloading trough must be fixed in the "driving" position to prevent swinging. 6. When operating the joystick, you should stay in the "neutral" position for a while before moving to the next position. Seven, do a good job in civilized construction, and the excess materials in the barrel are not allowed to fall randomly. After unloading, the mixing drum, trough, roller and other parts must be cleaned. 8. When the concrete agglomerates in the cylinder, the vehicle should be turned off, the switch key should be removed, and the outside of the cylinder should be monitored by someone outside.
Main performance characteristics 1. A special chassis developed for the rural market with a width of about 2.3 meters, suitable for a variety of rural roads. 2. Adopting a low inclination design, the inclination angle is 5 lower than that of similar concrete transport vehicles, the coefficient is higher than 10, the inlet and outlet are designed reasonably, the feeding and discharging speed is fast and the operation is simple; 3. The mixing form used in the mixing tank is a commonly used structure. The mixing blade adopts a three-dimensional double spiral mixing design, and the residual rate of the material is as low as 0.6 4. Transmission system: The driving mode of the mixing drum uses the engine as the power source, and the power take-off at the back of the engine takes the power, which is transmitted to the hydraulic pump through the transmission shaft, and the motor reducer drives the rotation of the mixing drum; 5. The control system of the concrete mixer truck; the control system controls the forward and reverse rotation and speed of the mixer drum through the left and right joysticks at the rear of the car to complete the feeding and discharging and mixing actions; 6 Water supply system The water supply system of the concrete transport mixer truck is mainly used to clean the mixing tank and the exterior. The water supply system is mainly the pressure water tank, and the water pressure can reach 0.6-0.8Mpa.

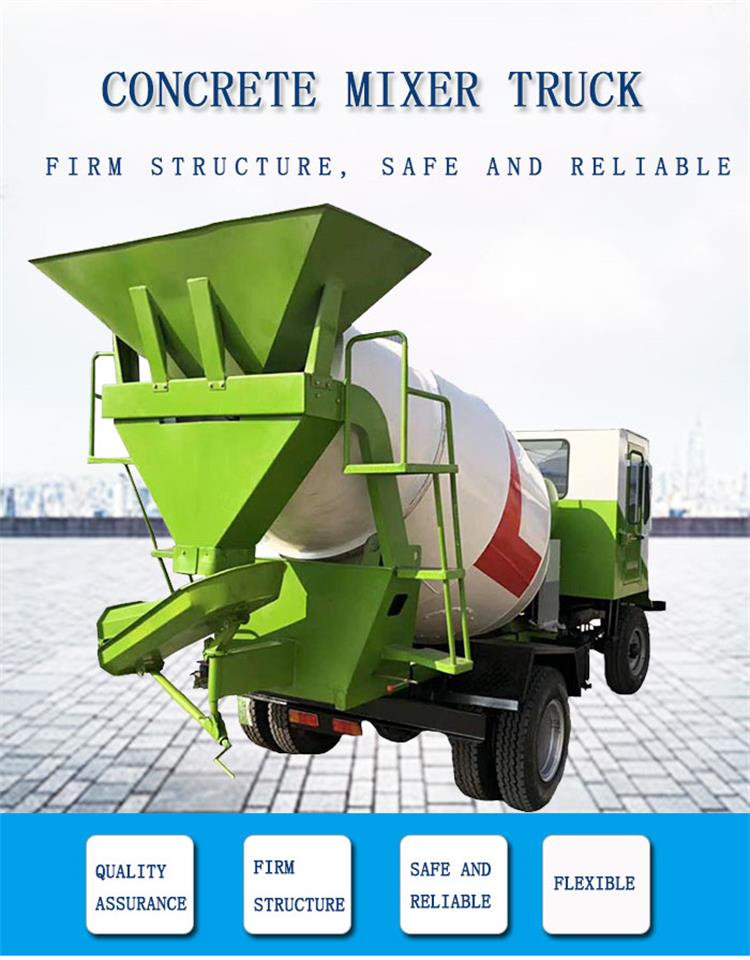

Product Show

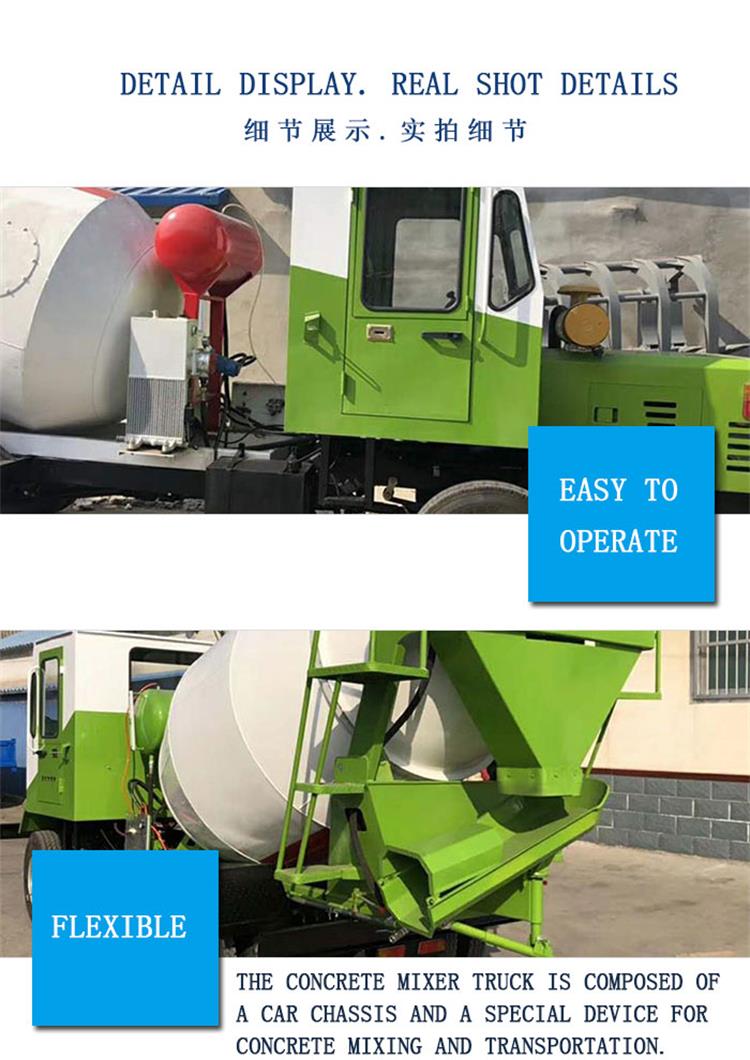

Product Details
Specification
Dimension(L*W*H) | 5000*2000*2700mm |
Power | 37kw |
Warranty | 1 Year |
Feeding speed | 2cubic /min |
Unloading speed | 1 cubic /min |
Stirring drum spee | 5-14r/min |
Height of feeding port | 2.5m |
Outlet height | 1 m |
External dimension | 5000*2000*2700mm |
Front bridge | Type 130 |
Tyres | 750-16 standard wire tyres |
Steering mode | hydraulic steering |

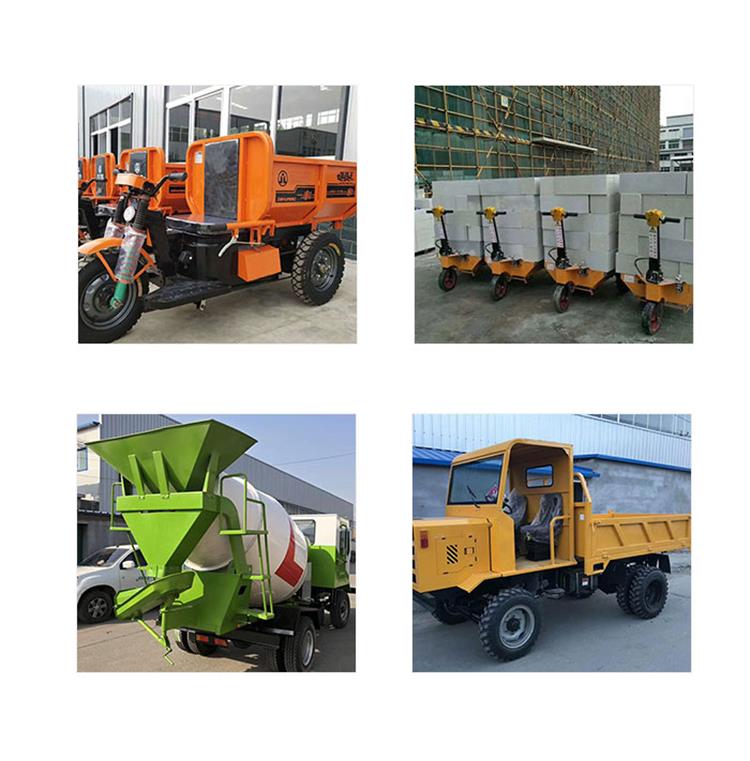

Hot Sale Products
Packing & Delivery
Company Profile
ShandongAOLAI Machinery Equipment Co., Ltd. exports goods to more than 120 countries including the United Kingdom, the United States, Canada, South Africa, Zimbabwe, India, Indonesia, Singapore, Australia, Mexico, Ecuador, Egypt, the United Arab Emirates, Saudi Arabia, Lebanon, Russia, Ukraine, Georgia, Vietnam, Mongolia, etc., our company has more than 300 employees, the company has a first-class technical team, we can provide quality products and professional services. The company produces and operates industrial and mining equipment, large-scale machinery, hydraulic machinery and other mechanical equipment. With high quality, reasonable prices, professional technical services, and good reputation, our group will be your best business partner! Welcome friends from all over the world to visit our factory and cooperate with us
FAQ
1.What's your advantage? A: Honest business with competitive price and professional service on export process. 2. How I believe you? A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed. 3.Where are you? Can I visit you? A: Sure,welcome to you visit our factory at any time. 4.How about the delivery time? A: Within 15-35 days after we confirm you requirement. 5.what kind of payment does your company support? A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
