CNC machining alloy steel textile machine parts

Technical

Hot Forging raw blank + Precision cnc Machining

Material:

Al6061-t6,6063, Alloy steel , C45, Q235

Material Standard

GB,ASTM,AISI,DIN,BS,JIS,NF

Forging Weight

0.3kg~15kg

Forging Dimension Tolerance:

CT8-10Grade

Forging Surface Rough:

Ra6.4 – 3.2

Rough of Machining Surface:

Ra0.8-1.6

Support File of Format:

ProE (.igs , .stp) , Auto CAD , PDF, Jpeg, Jpg, Png

Heat Treatment:

Quenching and Tempering , High Frequency Quenching

Machining Equipment

CNC Center, CNCs, Lathe machine , Milling machine ,Grinding

Surface Finished

Hard Anodizing, Power coating , Paint, Galvanization

Measure Tool:

Micrometer, Caliper, Height Gauge, Screw Gauge, Project ,CMM, Magnetic defect detector

Inspection

First Checking , Process Checking , Final Checking

QC Report:

Material Report, Product Dimension Inspection Report, Heat treatment Report

Description

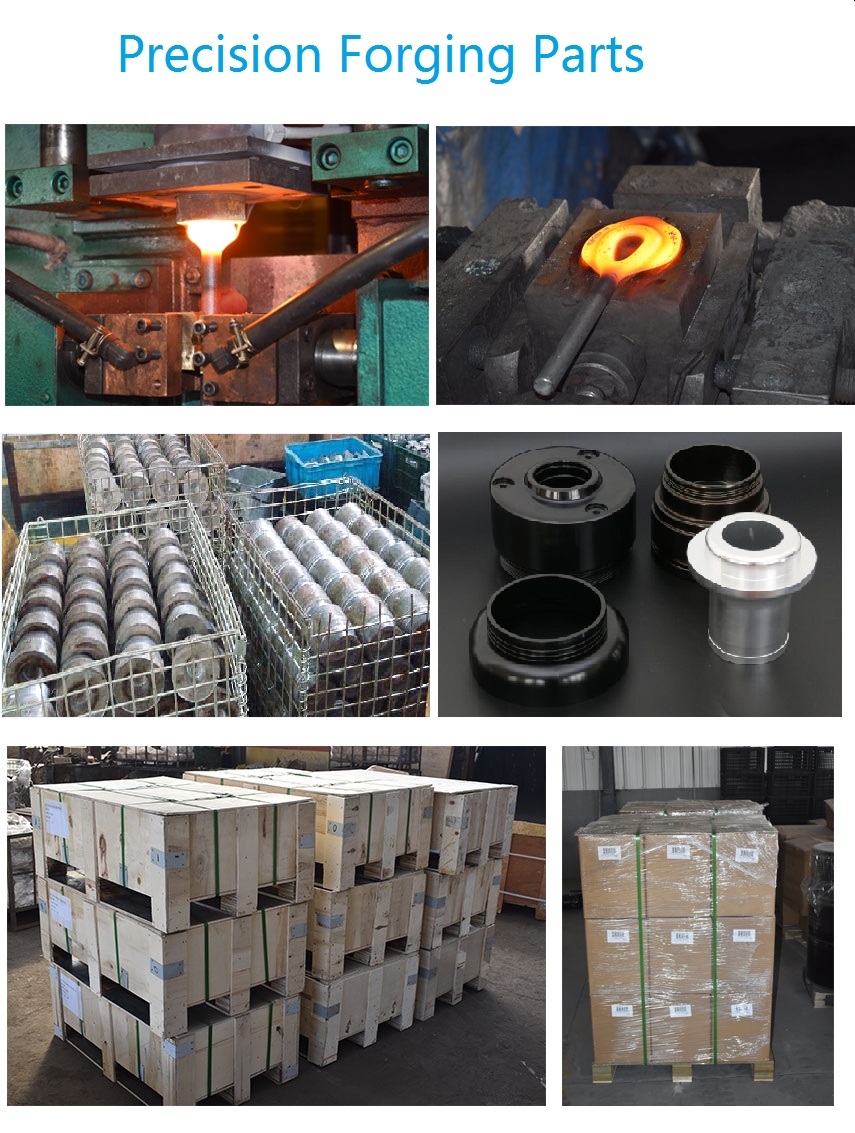

Forging part

Cooperation model

OEM or ODM

Design

As per customer specific engineering drawings, technical specification and special requirements;

Or customer give us the specified sample;

Or the customer conceptual or preliminary design;

Or the customer sketched idea

Accept drawing format

.jpg /.pdf /.dwg/.igs./.stp/x_t. etc

Material

Material stock is of many materials, including carbon steel, alloy steel, stainless steel, aluminum, brass even plastics

Material condition

The supplying material is on the many condition, including bar, forging, casting, extruding and etc.

Material weight

From 0.01~1000Kg

Application material standard

If no any specially required by the customers, we often suggest our customer to try the equivalent China National (GB) standard material that our engineering team proposes which to be properly converted from ANSI, ASTM, SAE, EN. DIN. BS, JIS and etc., to contribute the material cost control.

If it is necessary to use exact designated material no., it is also possible choice.

Available processing

(Technique)

Turning, forging, drilling, milling, planning, boring. Grinding, gear-hobbing, wire-cutting, sawing, reaming, screwing, EDM machining, CNC machining assembling and etc.

Precision

Average level: ±0.01mm, depending the part size and thickness and material

Mould & Fixture

To design the important size with mould factory , and make the necessary fixture in own machining shop, we never add any margins of them. They are just the cost.

Heat Treatment

(special heat Treatment factory)

For the heat treatment, we subcontract to our local qualified supplying factories to process at the out of special heat Treatment factory. Thanks to the long term good cooperating with our local suppliers and Ningbo area having a strong mechanical production engineering basements, generally we often can meet any heat treatment requirements on the metal works, such as annealing, normalizing, tempering & quenching, surface hardening and etc..

Surface treatment

(Special Surface treatment factory)

The surface treatment is to do special surface treatment factory. Our suppliers help us to supply our customers a wide range of surface finish solution, such as hot dip galvanizing, zinc plating, nickel plating, chrome plating, powder coating, epoxy painting, anodizing, black oxide, E-coating (Electrophoresis) and etc

Inspection

Whole inspection procedures (IQC, PQC and FQC) and QA plan are carried out in house to be compliance with the rules and regulation of ISO9001:2015

Quality control always be doing on site and on time, never try to do later;

If the customer found it is necessary any third authorized inspection organization are welcomed to witness the quality before the shipment.

Applicable field

The custom metal part may be one of the all kinds of auto parts, machinery parts, computer parts, medical parts, home appliances parts, electrical equipment parts, electrical appliance parts ,Electronic Products parts, Electronic parts, Generator parts, alternator parts, dynamo parts, electric generator parts, stationery , power switches, miniature switches, architecture, commodity and A/V equipment, hardware and plastic molds, sports equipment and gifts, etc.,

Reminding

The metal parts to be showed on the Alibaba.com are not for sale, it just for sales promotion purpose it is to explain for our potential customers that we had produced or are capable of making such similar metal parts or supply same metal processing services.

For any custom metal parts before mass production we need our customer to confirm and approve the working samples.
