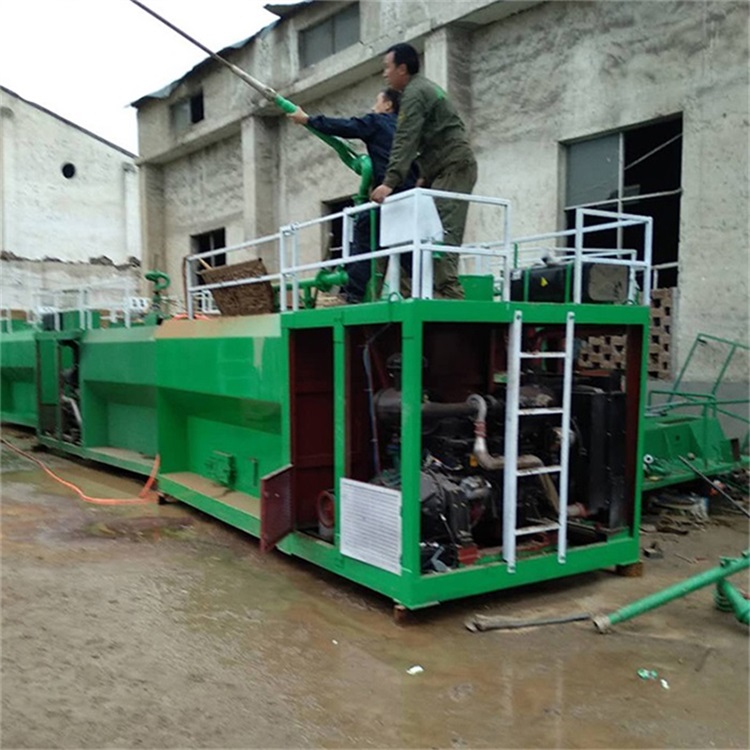

Product Details slope greening machine High power hydroseeder highway slope greening machine Structure composition of the guest soil spray seeder Control box: The hydraulic sprayer includes a start button, a horn button, a throttle handle, and an ammeter, which are used to start the diesel engine and observe the battery power. The throttle handle is used to control the speed of the mixing blade and the distance of the spray head! The pedal clutch is used in conjunction with the shift lever (mainly controls the forward and reverse rotation of the mixing blade in the tank, and the clutch shift lever is stepped on the clutch shift position like driving), Lifting valve: Put the lifting valve down during the mixing and loading stage to make the material agitate more evenly. When spraying starts, lift the lifting valve to start construction. Universal joint: also known as universal nozzle used to operate on the machine without taking over the spraying, and can rotate at 360°C! The universal joint ball valve and the return pipe ball valve are material output switches. Product Description
Product advantages Features 1. Features: High-pressure mud pump, wide blade path, not easy to jam the pump; the mud pump has a large flow rate and high working efficiency (such as 6 cubic meters and 15 minutes can complete a spraying); 2. This equipment can add a proper amount of grass fiber and a large amount of rice husks and sawdust to increase the adhesion of the mud, which has a significant effect on spraying high and steep slopes; 3. The factory can customize different tank capacities, dimensions and horsepower according to customer needs; 4. There are two types of guest soil sprayer, mechanical and hydraulic, which can be determined according to the customer's operating habits; 5. There are two types of mud pumps developed by our factory: single-stage pumps and multi-stage pumps, which can be selected by customers; 6. The company has relatively strong after-sales service technicians, and strives to provide customers with high-quality after-sales service. Product parameter Size: 4800*1800*2400 Net weight: 4500 kg Tank capacity: 35.5 m Fence platform: Yes Diesel engine power: 78 kW Speed: 1800 rpm Pumping capacity: 45 m3/h Exit range: 50 m Export head: 100m Stirring method: horizontal axis inclined blade mechanical stirring and circulating jet stirring Stirring shaft rotation speed: 0-100 rpm Transmission mode: electromagnetic clutch, driven by transmission shaft Solid content: volume ratio 70; weight ratio 60% Product Image
Packing and shipping
FAQ FAQ 1: What kind terms of payment can be accepted? A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted 2: What certificates are available in Machinery? A: For the certificate, we have CE, ISO,EPA(USA),CCC 3: What about the delivery time? A: 7-20 days after receiving the deposit. 4: What about the warranty time? A: 12 months after shipment or 2000 working hours, whichever occuts first. 5. What about the Minimum Order Quantity? A: The MOQ is 1 pcs 6.What about the service? 1). Quick response to every inquiry. 2). Professtional and detailed answer to any of customer's questions. 3). Strict QC and in time delivery. 4). Offer all relative material for customer to know and better use the machine. 5). Periodically after service follow up, offer any necessary support if needed. 6).For the new machine, within determined limits, the manufacture guarantees warranty for a period of 12 months after bought or 2000 working hours(whichever comes first). 7).The warranty includes repairation or replace the Parts
for free which were proved to be defective in origin by the technical department of the manufacture. 8).The repairation or replacement for the parts should not exceed the warranty period. 9).The warranty is valid on the condition of all the terms listed in the contract was observed.
Contact us if you need more details on Slope Greening Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Small Hydroseeding Machine、Hydroseeding Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
