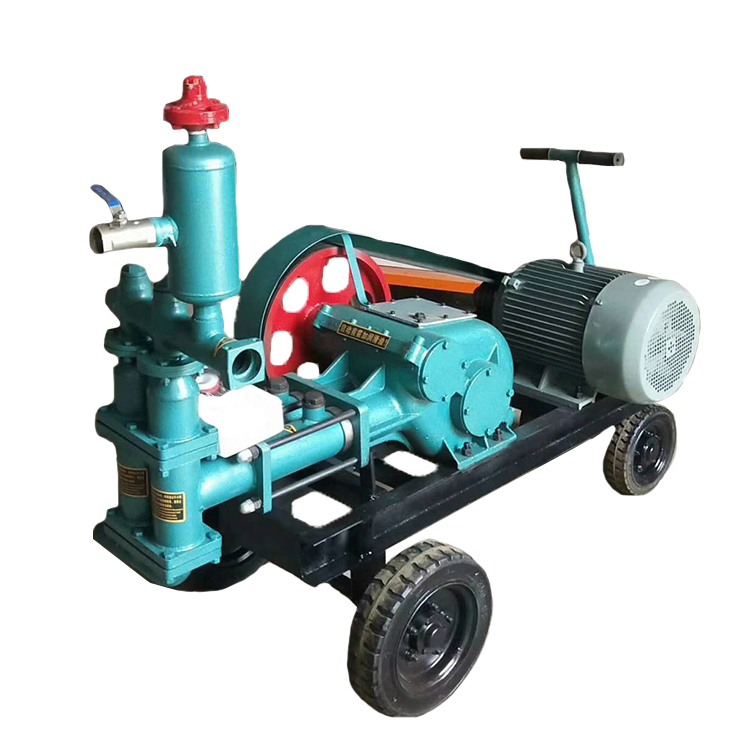

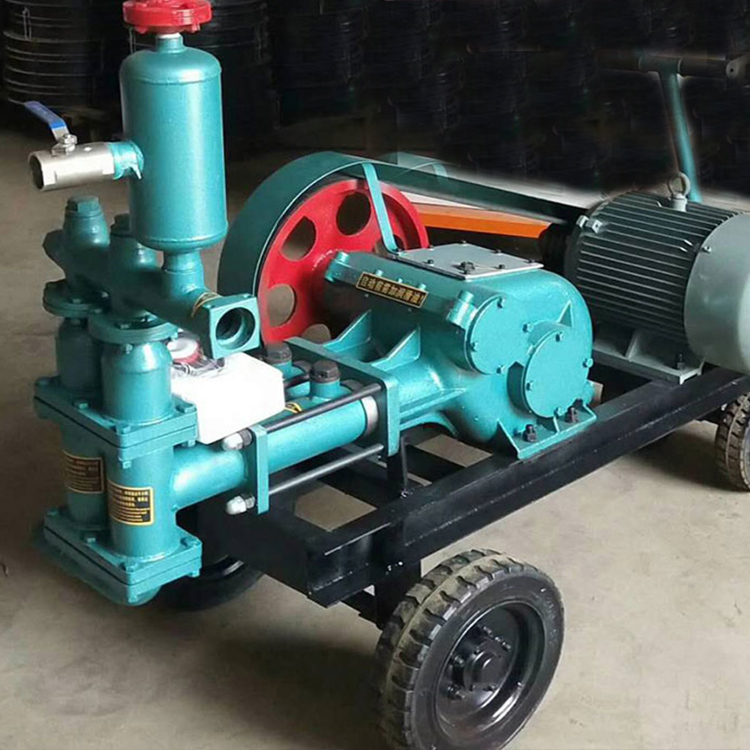

Horizontal double cylinder reciprocating double action piston slurry pump for drilling machine

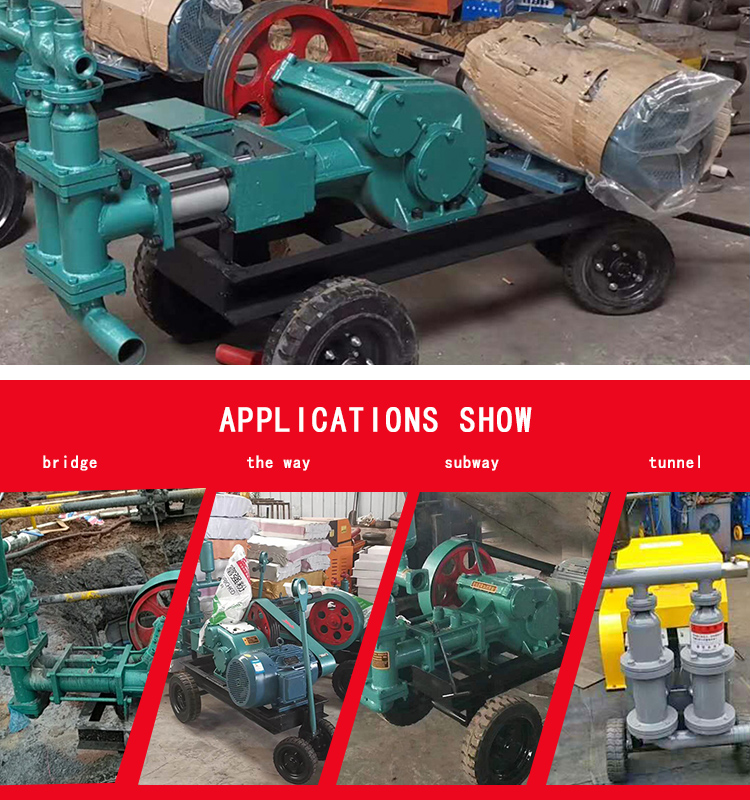

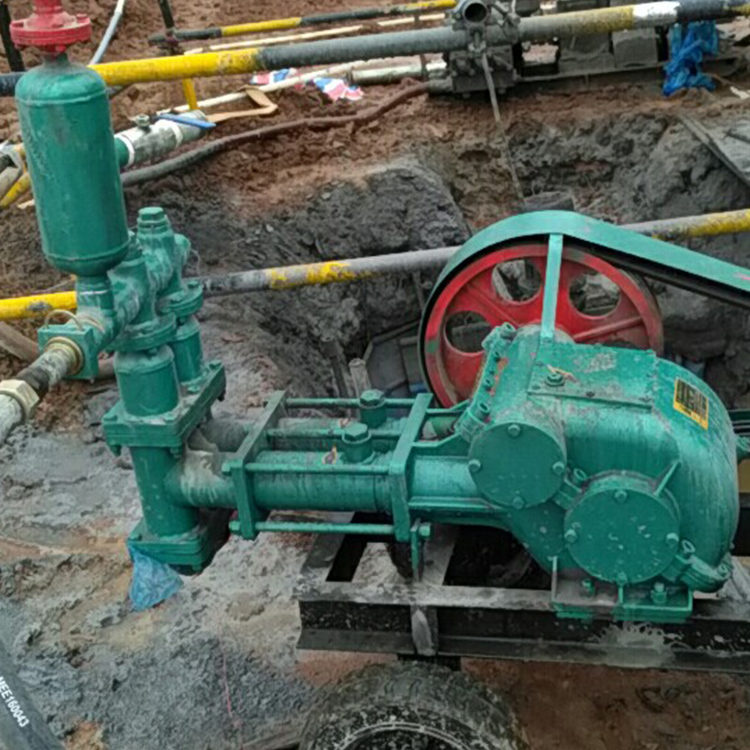

Product Details   Horizontal double cylinder reciprocating double action piston slurry pump for drilling machine BW70/8 horizontal double-cylinder mortar pump is mainly used for grouting construction of roads, bridges, dams, national defense, mines and other construction projects; it can also be used for mortar injection and expansion of prestressed component projects; coal powder mortar transportation in thermal power plants; Vertical and horizontal transportation of mortar in construction projects; used in chemical industry to transport slurry raw materials (color paste, paint), magnetic materials and other media; maintenance and repair of sandy soil, blast furnace, cement pavement, highway and other projects, It is an improved product of WSB piston grouting pump, with compact structure, good sealing performance, high pressure, easy piston replacement, simple assembly and maintenance, etc Product Description   Product advantages Scope of application     1. In construction engineering, it is used for vertical and horizontal conveying mortar pump     2. In the metallurgical iron and steel sector, it is used to repair blast furnaces and other equipment.     3. Used for grouting pump in national defense engineering, civil air defense engineering, mine and tunnel construction     4. In the chemical industry, it is used to transport paste-like raw materials (color paste, paint), magnetic materials and other media.     5. Used to reinforce dams in farmland water conservancy projects. Drilling wells in sand is used to reinforce the shaft wall.     6. In railway construction, it is used for grouting reinforcement of bridges and culverts.     7. Prestressed component engineering is used for mortar injection and expansion.     8. Used for conveying fly ash mortar in thermal power generation.     9. In the maintenance of highway pavement, it is used for grouting under the hollow of cement concrete pavement slab. Product parameter

Main technical parameters	numerical value	unit
Number of cylinders	2
Cylinder diameter	80	mm
Piston stroke	75	mm
Water absorption height	2.5	m
Diameter of inlet	64	mm
Drainage outlet straight	38	mm
Motor power	11	KW
Input speed	1460	r/min
Diameter of belt wheel	400	mm
Type of triangle belt	B2032	mm
Impact	100	C/min
Flow	75	L/min
Rated pressure	8	MPa
Dimensions	1200*850*900	mm
Total weight	490	Kg

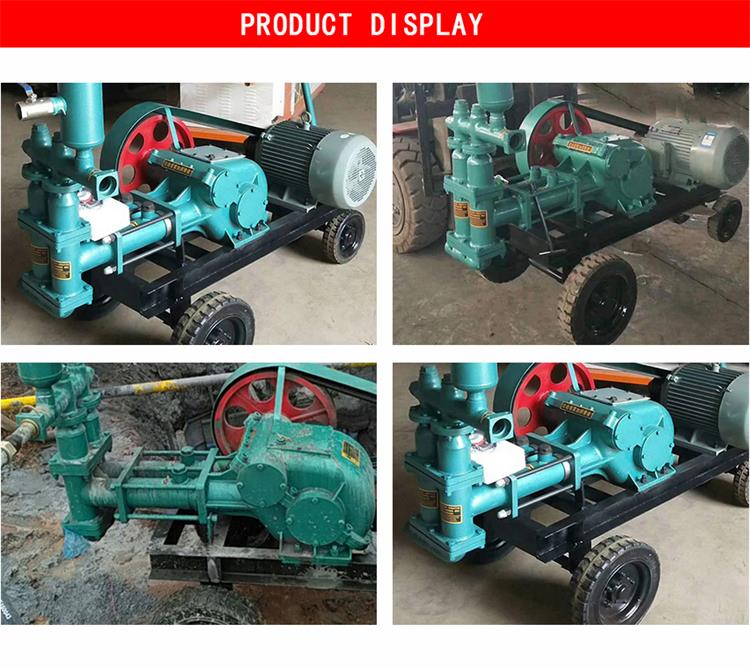

Product Image     Certification   Packing and shipping   FAQ FAQ                                                                                                            1: What kind terms of payment can be accepted? A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted 2: What certificates are available in Machinery? A: For the certificate, we have CE, ISO,EPA(USA),CCC 3: What about the delivery time? A: 7-20 days after receiving the deposit. 4: What about the warranty time? A: 12 months after shipment or 2000 working hours, whichever occuts first. 5. What about the Minimum Order Quantity? A: The MOQ is 1 pcs 6.What about the service? 1). Quick response to every inquiry. 2). Professtional and detailed answer to any of customer's questions. 3). Strict QC and in time delivery. 4). Offer all relative material for customer to know and better use the machine. 5). Periodically after service follow up, offer any necessary support if needed. 6).For the new machine, within determined limits, the manufacture guarantees warranty for a period of 12 months after bought or 2000 working hours(whichever comes first). 7).The warranty includes repairation or replace the Parts for free which were proved to be defective in origin by the technical department of the manufacture. 8).The repairation or replacement for the parts should not exceed the warranty period. 9).The warranty is valid on the condition of all the terms listed in the contract was observed.

Contact us if you need more details on Double Cylinder Piston Pump. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Double-cylinder Cement Mortar Grouting Machine、Tunnel Bridge Double Cylinder Grouting Pump. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Construction machinery
